Meja Operasi Elektrik

Jual Meja Operassi Elektrik my life

Merk : Mylife atau my life

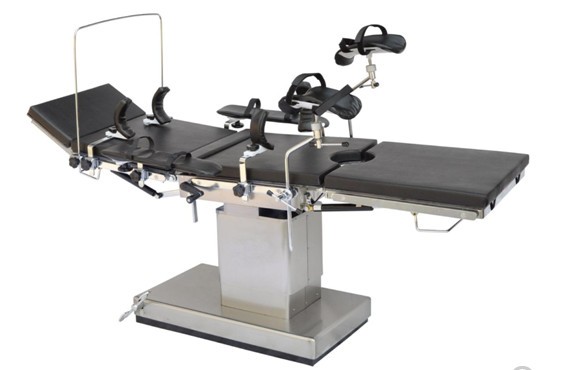

Type : MTE-508 ELECTRIC OPERATING TABLE

Specifications

Dimension of table top:

Overall Length                                                    ………………………………2100mm

Width                                                                  ………………………………500mm

Dimension of section:

Head Section                                                      ………………………………250×500mm

Back Section                                                       ………………………………500×500mm

Seat section                                                         ………………………………530×480mm

Leg Section                                                         ……………………....………550×500mm

Kidney Bridge                                                    ………………………………100×480mm

Table top of from floor:

Max Height                                                         ………………………………900mm

Min Height                                                          ………………………………700mm

Range of movements:

Reversed Tendelenburg                                      ………………………………≥20⁰

Trendelenburg                                                     ………………………………≥15⁰

Lateral tilt                                                                       ………………………………≥15⁰

Adjustment of sections

Head Section Raised from the horizontal                       ………………………………≥45⁰

Head Section lowered from the horizontal         ………………………………≥90⁰

Leg Section Lowered from the horizontal          ………………………………≥90⁰

Back Section Raised from the horizontal                        ………………………………≥45⁰

Back Section lowered from the horizontal         ………………………………≥10⁰

Kidney Bridge Elevated                                     ………………………………≥100mm

Safe Working Load                                            ………………………………135kg

  Lifting speed                                                         ………………………………416mm/s

Ingress Protection                      :IPX4

Power                              : AC220V/50Hz

  Internal electric source      :DC24V

Battery capacity              : ≥ 2.4AH

Device safety sort  I        : B

Jual Meja operasi Eletkrik

Meja Operasi My Life
